Newly Drinking water plant supplier bottle filling water production plant

FOB Reference Price:Get Latest Price
US $7,800-12,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine, RO
Condition:
New, New
Application:
Beverage, Food
Packaging Type:
Bags, Barrel, Bottles, Cans, Pouch, Stand-up Pouch
Packaging Material:
Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220/380
Power:
3.5kw
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Livingh2o
Model Number:
RO1000I
Dimension(L*W*H):
650*1600*1200
Weight:
100
Certification:
CE/ISO9001
After-sales Service Provided:
Engineers available to service machinery overseas
Material:
SUS 304
Warranty:
1 YEAR
Medium Material:
Active Carbon
Power(W):
100
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case
Port
Jiangmen
Lead Time :
25 working days after deposit
Video Description

Newly Drinking water plant supplier drinking water production plant





BEST PRICE, HIGH QUALITY, GOOD SERVICE!!



TIME IS MONEY IN THIS BUSINESS, SO LET'S GET RIGHT TO IT.



CONTACT ME RIGHT NOW!




Fresh & healthy water from LIVINGH2O


Product Description





  3 in 1 Bottle Filling Machine Technical Parameter



JYX XGF16-12-6

JX XGF18-18-6

JYX XGF24-24-8

JYX XGF32-32-10

Productivity

1500-4000 BPH

3000-8000 BPH

3000-12000 BPH

4000-18000 BPH

Rinsing Head

16

18

24

32

Liquid Filling Head

12

18

24

32

Capping Head

6

6

8

10

Bottle Volume

350ml~2000ml±10ml

350ml~2000ml±10ml

350ml~2000ml±10ml

350ml~2000ml±10ml

Bottle Diameter

φ50-90 mm

φ50-90 mm

φ50-90 mm

φ50-90 mm

Bottle Height

150-310 mm

150-310 mm

150-310 mm

150-310 mm

Filling Tolerance

±2%

±2%

±2%

±2%

Cap Size

28mm and 30mm

PE Standard Caps

28mm and 30mm

PE Standard Caps

28mm and 30mm

PE Standard Caps

28mm and 30mm

PE Standard Caps

Air Pressure

0.5 MPa

0.5 MPa

0.5 MPa

0.5 MPa

Air Consumption

500 L/min

500 L/min

500 L/min

500 L/min

Filling Water Consumption

1.5 m3/h

3 m3/h

6 m3/h

7.5 m3/h

Rinsing Water Consumption

0.5 m3/h

1 m3/h

2 m3/h

2.5 m3/h

Motor Power

3.5kW

3.5kW

4kW

7.5kW

Voltage

380V

380V

380V

380V

Dimension

(L×W×H)

2640×1520×2340mm

(L×W×H)

2816×1883×2340mm

(L×W×H)

3194×2054×2560mm

(L×W×H)

3937×2846×2560mm

Weight

2500kg

3000kg

5300kg

8000kg

Filling Principle

Gravity Filling

Gravity Filling

Gravity Filling

Gravity Filling





PROCESS:


Water treatment system---Automatic or semi-automatic blow moulding machine---Automatic pulling cap machine ---Automatic inside and outside rinsing machine ---Automatic putting on bottle ---Machine Automatic filling machine ---Automatic sealing machine---Automatic labeling machine----Automatic film shrinkage packing machine-----Ware House

Configuration:

1. RO water treatment system : 500L-100T per hour

2. Bottle blowing machine : 300ml-20L

3. 3 in 1 bottle water filling machine, washing, filling, capping

4. Automatic  Labeling machine or Manual Labeling Stage

5. Ink-jet printer

6. Steam label shrinkage tunnel

7. Automatic film shrinkage packing machine.








Packaging & Shipping

loading




Our Services

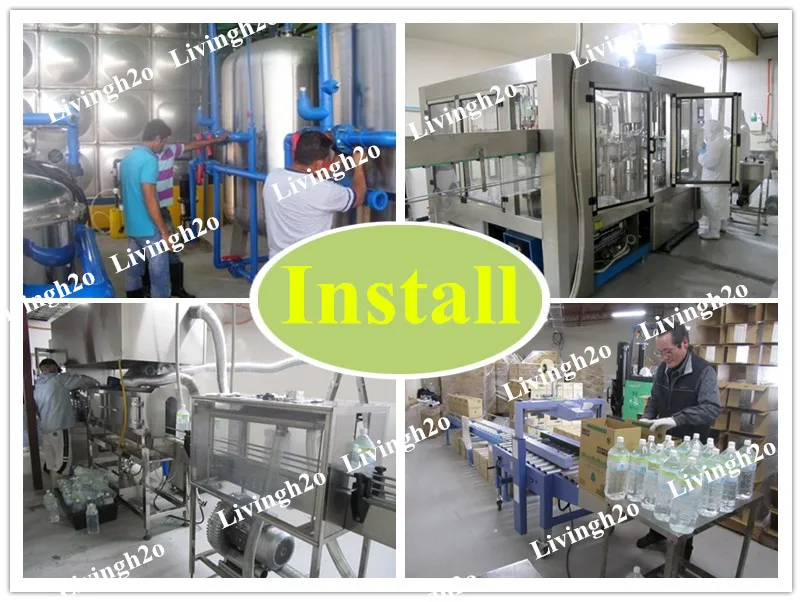

Install

Livingh2o Machinery

can provide turnkey services for customers, from plant layout, equipment manufacture and production line installation to operator training and other after-sales services .



 Why choose us:

1, We enforce the ISO9000 quality management system strictly. We have the falutless quality control program, From product design, raw material selection, spare parts inspection, To machanical product inspection, skilled  workers, ex-factory inspection , packaging ways, etc.


2, Our chief engineer and the main technical personnel have above 10 years experience, a number of technologies  are national patents;


3, We promise 1 year warranty for all products, long-term technical support;


4, We always put customers' view in the first place ,  create value for the customer's business.
