high quality Jiangmen Livingh2o pure water filling machine

FOB Reference Price:Get Latest Price
US $6,000-10,300 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Condition:
New
Application:
Beverage
Packaging Type:
Cartons
Packaging Material:
Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220v
Power:
50Hz
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
livingh2o
Model Number:
JYX-XGF
Dimension(L*W*H):
2350*1610*2250mm
Weight:
2500kg
Certification:
ISO9001
After-sales Service Provided:
Engineers available to service machinery overseas
SupplyAbility
SupplyAbility:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
Jiangmen/Guangzhou
Lead Time :
25 working days

High quality pure water small bottle filling machine





Descriptions:



1) The 3-In-1 pure water filling machine is used for aerated water filling.

2) The machine contains washing filling and capping with complete automation.

3) The machine suitable for aerated water filling into polyester bottles and PET bottles.

4) It can be used for all kinds of bottles.

5) The bottleneck blocking makes the process of changing bottles easy by only adapting the height of conveyor chain.

6) The filling process adopts the micro-pressure technology, which makes filling process faster and more stable.

7) Compared with other equipment of the same kind this machine possesses a better quality and thus enjoys a high ratio of function against price.





Features:


1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan Mitsubishi, France Schneider, OMRON.







Main technical data:



Model
JYX XGF16-12-6
JYX XGF18-18-6
JYX XGF24-24-8
JYX XGF32-32-8
Capacity (500ml)(b/h)
2000-4000
3000-6000
6000-9000
10000-12000
Rinsing station
16
18
24
32
Filling station
12
18
24
32
Capping station
6
6
8
8
Rinsing water consumption (T/H)
0.8
1.2
1.2
1.5
Outsize(mm)
2350*1610*2250
2480*1960*2250
3010*2180*2400
4000*2200*2500
Packing size(mm)
2365*1625*2270
2495*1975*2270
3035*2195*2420
4030*2220*2530

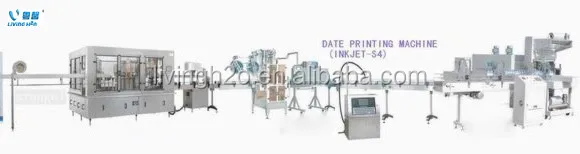

 Reference pictures:
