PET bottled water production line

FOB Reference Price:Get Latest Price
US $1,000-100,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
100 Set/Sets per Month
Port:
Jiangmen,Shenzhen etc.
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
water, beverage, juice, tea
Packaging Type:
Bottles
Packaging Material:
Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Livingh2o
Model Number:
JYX XGF16 series
Type:
Packaging Line, Filling Machine
Packaging & Delivery
Packaging Details
Wooden case
Delivery Time
1 month

Specifications

24-24-8 Automatic water filling machine
1.PLC control
2.With winding-conveying system
3.Auto, easy to operate
4.ISO9001, CE

PET bottled water production line







24-24-8 Automatic water filling machine



Model
JYX XGF16-12-6
JYX XGF18-18-6
JYX XGF24-24-8
JYX XGF32-32-10
Capacity (500ml)(b/h)
2000-4000
3000-6000
6000-9000
10000-12000
Rinsing station
16
18
24
32
Filling station
12
18
24
32
Capping station
6
6
8
10
Rinsing water consumption (T/H)
0.8
1.2
1.2
1.5
Outsize(mm)
2350*1610*2250
2480*1960*2250
3010*2180*2400
4000*2200*2500
Packing size(mm)
2365*1625*2270
2495*1975*2270
3035*2195*2420
4030*2220*2530


Operation steps:



Features:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.

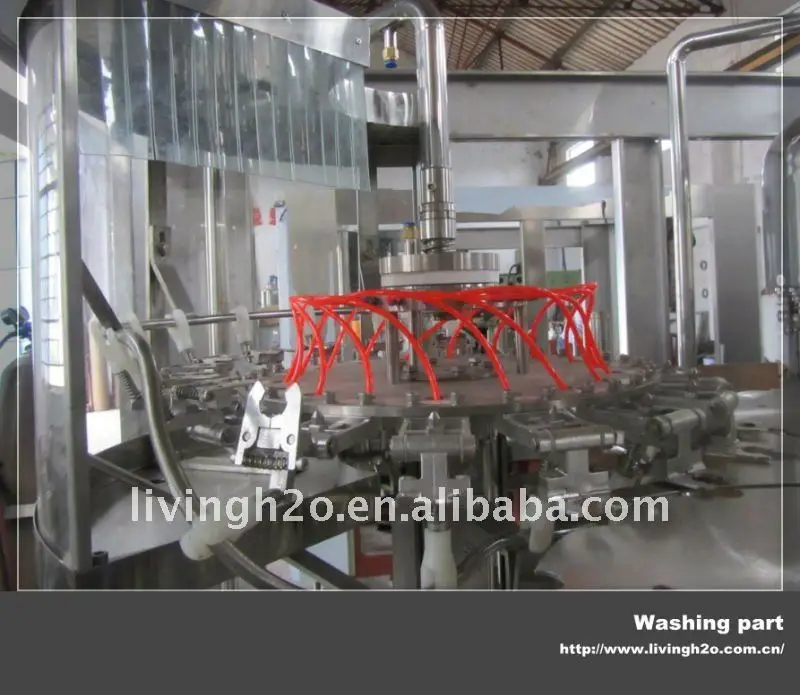

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

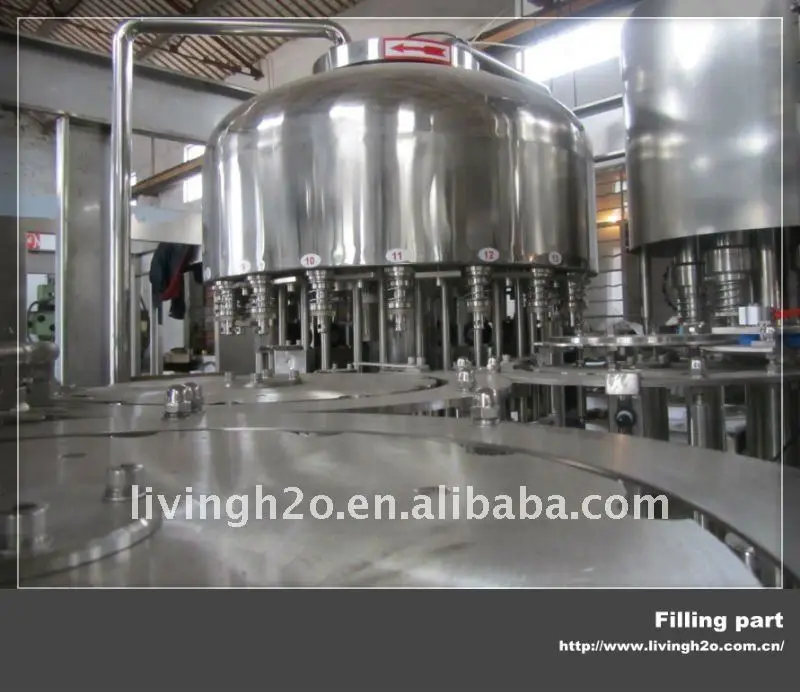

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan Mitsubishi, France Schneider, OMRON.
