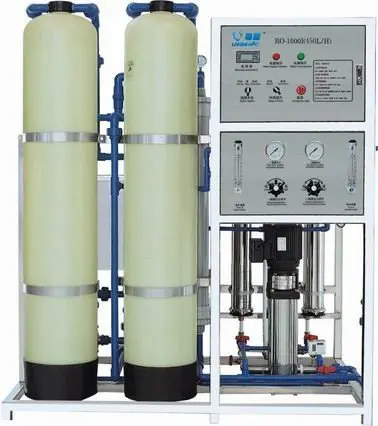

Reverse osmosis technology is the most advanced and effective desalting technology in the world for physical separation with macromolecule membrane, reverse osmosis equipment composes of reverse osmosis membrane component which is the core, high pressure multi-level centrifugal pump, high pressure pipe control valve and protective device, and can effectively remove dissolved salt, colloid, bacterium, virus and most organic from water.
The reverse osmosis membrane desalt technique features higher efficiency, cost effective and reliable compared with common ion exchange and distilling method, and is widely applied in such industries as electronics, power, photovoltaic, beverage, medicine, middle water recycling and sea water desalination etc
UF water treatment for mineral water:
Our UF water treatment system is high desalination rate, low operation cost, UF membrane auto wash and manual wash .UF membrane wash use medicament in machine
Using automatic pre-treatment system, realizing operation Unmanned
Using imported glandule booster pump, high efficiency with low noise, reliable and stable.
On-line monitoring and controlling the water quality, monitoring the water quality change condition timely, guarantee the water quality.
All indication of purification, stability and no bacterium for water reach relevant standard of state or enterprise.

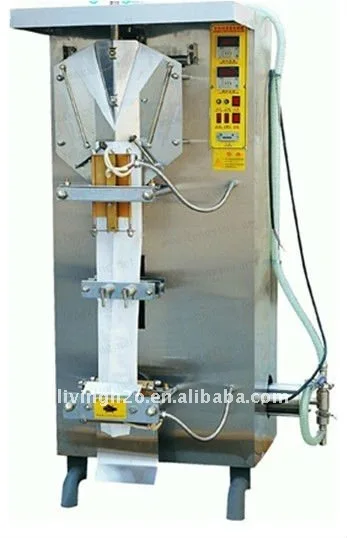

2. Filling sealing printing machine
The machine can pack kinds of noncarbonated liquid material widely, especially source, vinegar, syrup, beverage, confect beverage(also the coded beverage makes ice bag), soy milk, milk, mineral water, grease bean curd and liquid sack.
- Plastic package forming
- UV disinfection
- With cursor
- Vertical seam sealing - date synthesis
- Line traction plastic package
- Quantitative filling
2.1. Yield capacity: 1500~2200Bag/H
2.2. Packing volume: 100~1000ml/Bag
2.3. Filling precision: ±1%
2.4. Film width: 240mm or 320mm (optional or choose others)
Power: Motor: single phrase, three phrases 1.1KW
Vertical hot seal: 0.3KW; Horizontal hot seal: 0.5KW
UV sterilizer lamp: 15KW
2.5. Power supply: AC220V/Hz or AC380V (three phrases)
2.6. The weight of the machine: 360kg
2.7. Dimension (L×W×H): 750*700*1700mm
1. Sack molding
2. UV sterilize
3. Vertical cutting hot seal
4. Date code
5. Beeline tows sack
6. Ration filling
7. Horizontal cutting hot seal
8. Cutting sack
9. Count automatically

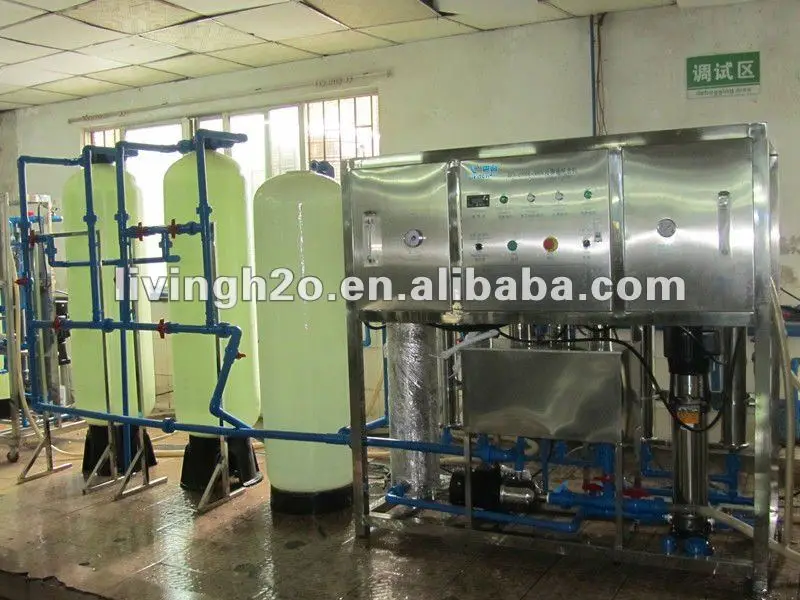

A whole line production line reference picture:
We also have the cup filling production line,any details please contact with Our group
