Newly automatic 20 liters pure water filling machine

FOB Reference Price:Get Latest Price
US $5,000-7,500 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
50 Set/Sets per Month
Port:
jiangmen,shenzhen,etc
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Condition:
New
Application:
Beverage
Packaging Type:
Barrel, Bottles
Packaging Material:
Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
Customized
Power:
2.0KW
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
livingh2o
Model Number:
JYX XG-100/J(60B)
Dimension(L*W*H):
Accoding
Weight:
2500kg
Certification:
ISO9001
After-sales Service Provided:
Engineers available to service machinery overseas
bottle size:
3/5 gallon
capacity:
120B/H
processing:
filter
Packaging & Delivery
Packaging Details
wooden cases
Delivery Time
20 working days

Automatic 3/5 gallon mineral/pure water filling mahcine




Main technical parameters of the device:



Item
Specification
Production capacity
300 Buckets/hour
Bottle’s capacity
18.9 Liters (equal to 5 gallons)
11.3 Liters (equal to 3 gallons)
Bottle’s specification (mm)
Φ270×490×Φ56
Φ230×420×Φ56
Cap’s specification (mm)
Φ58×40
Rated input power
2.0KW
Electromotor power
Conveying electromotor
0.37KW
Disinfectant washing pump
0.37KW
Pure washing/filling pump
0.55KW
Cap-aligning electromotor
0.06
Power supply
Three phase AC 380V±5%  50Hz
Single phase AC 220V±5%  50Hz
Rated current
15A   (18A)
Net weight
230kgs
Outer size
3060×7800×1540(mm)
Requirement of air compressor
0.1 M³ 0.17 M³/Min   0.8Mpa/Cm²
Requirement of water supply
3M³/H



Introduction:



     The device employs key components of electrical appliances and metal materials manufacturing by name brand factories from home and abroad.  Not only is the device provided with the style of original installation from abroad with advanced technology, high automatization, easy operation and reliable performances, but also features with small size, small weight and beautiful appearance, anti-corrodibility, thorough disinfectant, prevention of air polluted effectively and insurance of high quality, which is available for the production of 5 & 3 gallons bottle water filling and applied to the food & drink industry, medical industry and chemical industry widely.

 Filling machine:



XG-100/J  PLC-Controlled Microcomputer Auto Bottle Washer & Filler manufactured by our company, which concentrates the functions of bottle washing, filling and capping with 5 gallons on one set of machine and manufactured with the standard of America Drinking Water Industry Association & with reference to overseas newest type of equipment.



Operation procedures

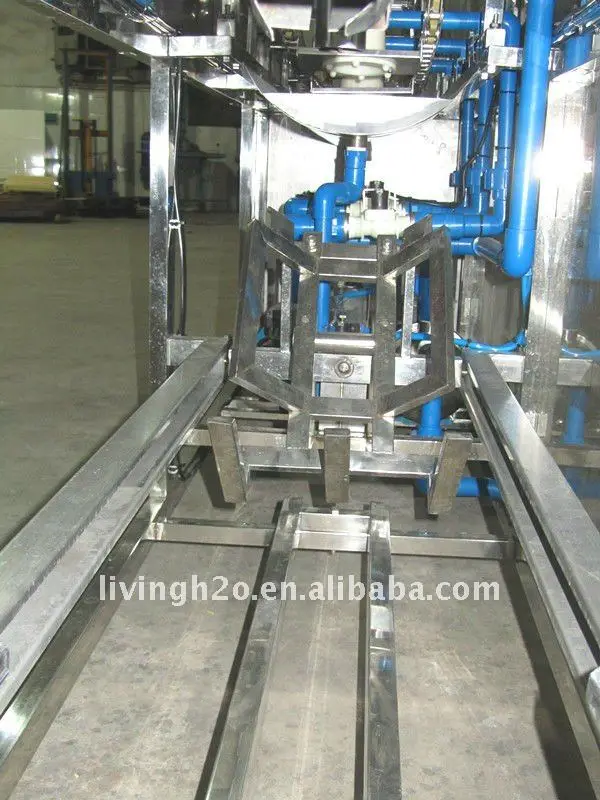

  The  bottle entering-->  disinfectant swashing-->  pure water-->  washing-->  bottle dropped down-->  bottle seated on the bottle pushing supporter-->  pure water feeding-->  (cap-aligning) cap-covering-->  capping-->  output of finished water





Advantage

The complete set of equipment is manufactured by high-tension stainless steel materials and stainless plate steel with precise argon arc, infrequent distortion and fair welding veins;



The conveying component structures with stainless steel to assure normal running of the device under various conditions; Nonmetallic components are manufactured elaborately by wearable materials, such as nontoxic PP plastic, etc;



 In order to make the performance of the device more stable, most of conveying electromotor and booster pump are those products that exportation and electrical components are manufactured elaborately by imported series of products or name brand series of products at home.



A WHOLE production line
