Small semi-automatic 5 gallon drinking pure water treatment production lines

FOB Reference Price:Get Latest Price
US $10,000-20,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
5 Set/Sets per Month
Port:
Jiangmen/Shenzhen/Guangzhou
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
livingh2o
Model Number:
JYX-XG
Usage:
water processing equipment
Type:
water processing equipment
Power Source:
Electric
Voltage:
220V/380V
Power(W):
Model
Weight:
Model
Dimension(L*W*H):
Custozied
Certification:
ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
drinking water production plant
Packaging & Delivery
Packaging Details
wooden case
Delivery Time
15-25 working days

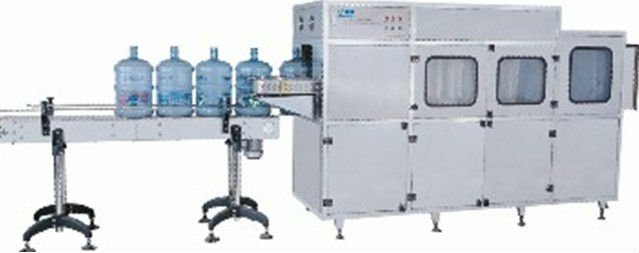

    Automatic 5 Gallon Bucket Water Produciton Line

 Product Description:

This water production line's capacity is 60-300bph for 5 gallon bucket.  All parts that directly contact with water are made of high quality stainless steel. The critical electrical components are from famous international brands, such a Mitsubishi, Omron etc.

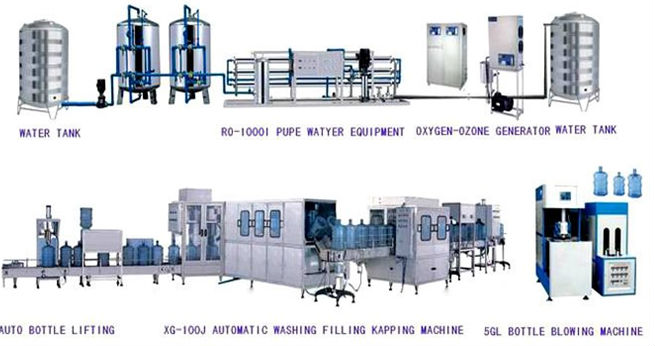

Including related intems as below:



1, 6000L/H Reverse Osmosis system (imported flimtec menbrane, high efficiency CNP pump)



2, Automatic Caps (Lid) pulling machine



3, Automatic Empty bottle Exterior brush washer



4. Automatic Empty bottle loader



5. Automatic 5 gallon bottle Automatic inside Rinsing /Filling/Capping Machine



6. Automatic Caps cleansing and dosing system



7. Automatic Caps sleeve shrinking sealing machine



8. Air compressor system for the 300BPH filling line (Piston type Non-oil LP air compressor) LB30100



Reference pictures:

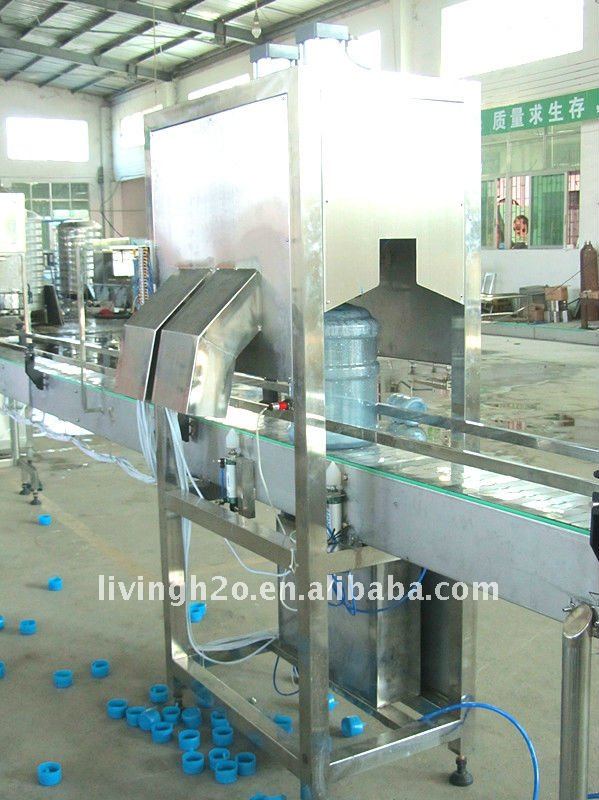

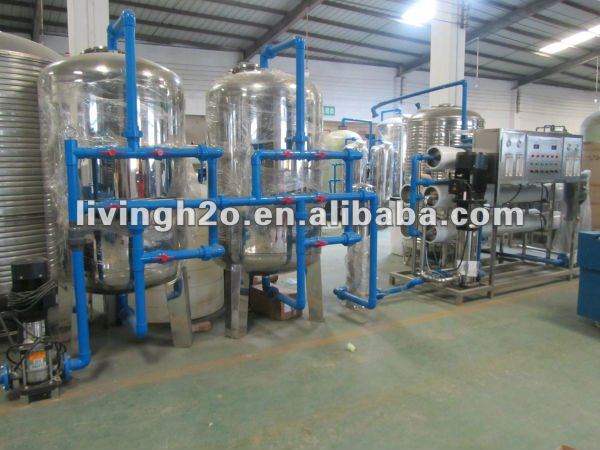

RO pure water treatmentUF mineral water treatment  Cap-pulled machine

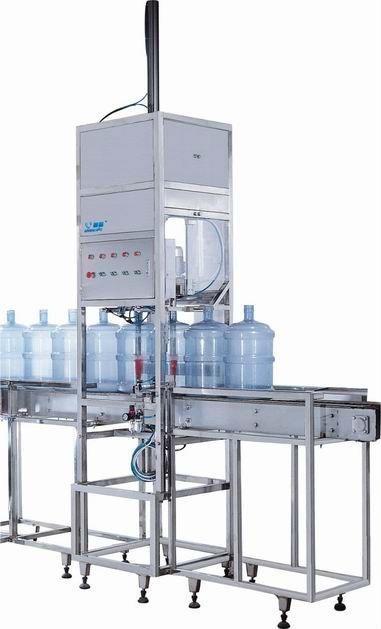

   Washing machine     Loading machine     Lifting machine

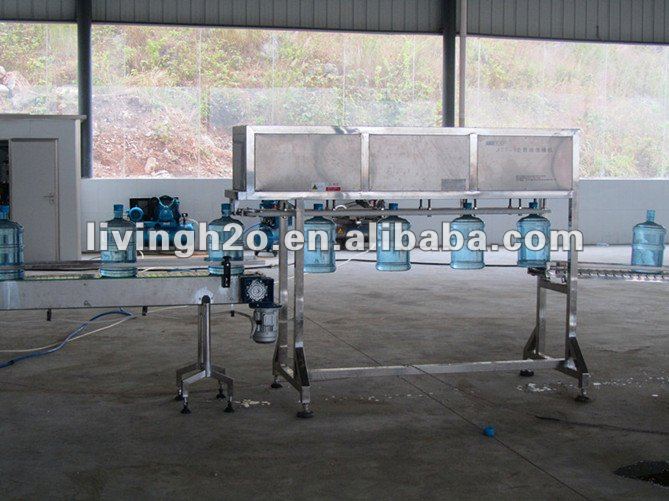

  Working positionsExterior washing machineInterior washing machine





Parameter of the water filling machine:

                    Type

XG-100/J(100buckets/H)

Power

220V±5% 50Hz

380V±5% 50Hz

Input power( KW)

1.12KW

Bottle's spec(mm)

Φ270×490×Φ56
Φ230×415×Φ56

Bottle's volume

5gallon or 3 gallon

Capsule's spec(mm)

Φ58×40

The capability of compress air

P≥0.5MPa

Wash bottle's capability

100buckets/H

Bottle filling capacity

100buckets/H

              Out size(mm)

2670×530×1520

 Weight(kg)

N.W(Kg)

                             194

The direction of bottle output

Bottle output with left ro right direction







Processing item:

 Pure water/Mineral water
