3-in-1 pure water filling machine

FOB Reference Price:Get Latest Price
US $10,000-100,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
100 Set/Sets per Month
Port:
Jiangmen, Shenzhen etc.
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Condition:
New
Application:
water
Packaging Type:
Barrel
Packaging Material:
Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V
Power:
4.2kw
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Livingh2o
Model Number:
JYX XG-100/J( 200B/H)
Certification:
ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
pure water filling machine
Capacity:
200Barrel/Hour
Packaging & Delivery
Packaging Details
Wooden case
Delivery Time
35 days

Automatic 20 liter bottled water filling machine

The device employs key components of electrical appliances and metal materials manufacturing by name brand factories from home and abroad.  Not only is the device provided with the style of original installation from abroad with advanced technology, high automatization, easy operation and reliable performances, but also features with small size, small weight and beautiful appearance, anti-corrodibility, thorough disinfectant, prevention of air polluted effectively and insurance of high quality, which is available for the production of 5 & 3 gallons bottle water filling and applied to the food & drink industry, medical industry and chemical industry widely.

The operation procedures of Microcomputer Bottle Washing & Filling Device from the bottle entering-->  disinfectant swashing-->  pure water-->  washing-->  bottle dropped down-->  bottle seated on the bottle pushing supporter-->  pure water feeding-->  (cap-aligning) cap-covering-->  capping-->  output of finished water, is controlled by PLC with the functions of automatic finish, precise orientation, little manpower and low working intensity. The complete set of equipment is manufactured by high-tension stainless steel materials and stainless plate steel with precise argon arc, infrequent distortion and fair welding veins; The conveying component structures with stainless steel to assure normal running of the device under various conditions; Nonmetallic components are manufactured elaborately by wearable materials, such as nontoxic PP plastic, etc; In order to make the performance of the device more stable, most of conveying electromotor and booster pump are those products that exportation and electrical components are manufactured elaborately by imported series of products or name brand series of products at home.

Main technical parameters of the device:

Item
Specification
Production capacity
200 Buckets/hour
Bottle’s capacity
18.9 Liters (equal to 5 gallons)
11.3 Liters (equal to 3 gallons)
Bottle’s specification (mm)
Φ270×490×Φ56
Φ230×420×Φ56
Cap’s specification (mm)
Φ58×40 (Cap bar:18mm×7.5mm)
Rated input power
4.2KW
Electromotor power
Conveying electromotor
0.37KW
Disinfectant washing pump
0.37KW
Pure washing/filling pump
0.55KW
Cap-aligning electromotor
0.06
Power supply
AC 380V±5%  50Hz
AC 220V±5%  50Hz
Rated current
22A   (27A)
Net weight
310kgs
Outer size
3250×950×1550(mm)
Air compressor required
0.1 M³ 0.17 M³/Min   0.7Mpa/Cm²
Water supply required
4.5M³/H

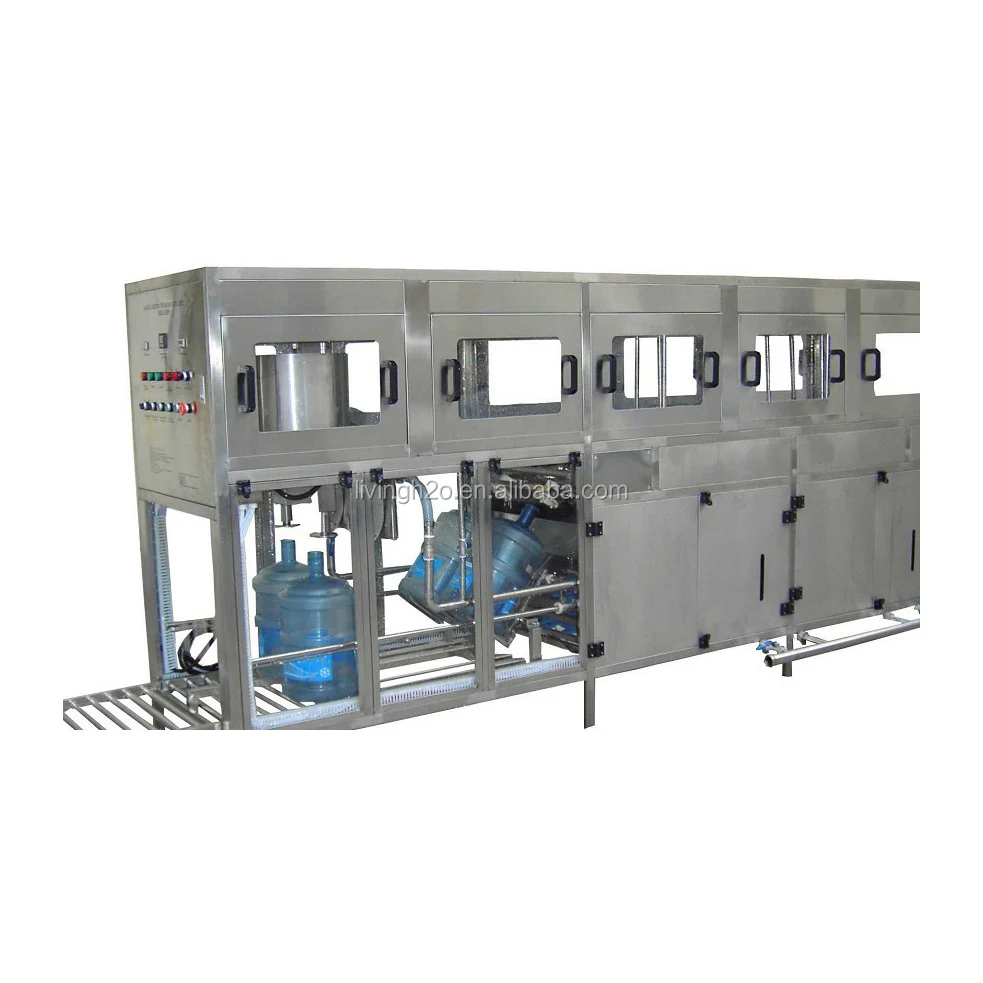

Reference pictures:
