900BP H high quality 5 gallon bottle pure water washing filling capping machine production line

FOB Reference Price:Get Latest Price
US $1,000-100,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
JYX-XG900
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Condition:
New
Application:
Beverage
Packaging Type:
Bottles, Barrel
Packaging Material:
Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V
Power:
50Hz
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
livingh2o
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
5 gallon bottle washing filling capping machine
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
Jiangmen

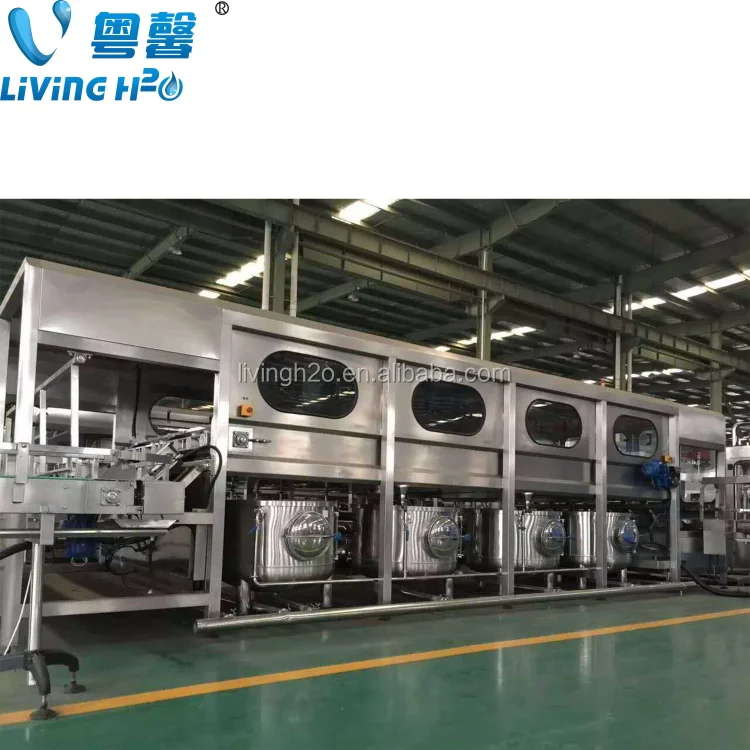

900BP H high quality 5 gallon bottle pure water washing filling capping machine production line



Filling machine:

This machine  manufactured by our company, which concentrates the functions of bottle washing, filling and capping with 5 gallons on one set of machine and manufactured with the standard of America Drinking Water Industry Association & with reference to overseas newest type of equipment.

27



Operation procedures

 the bottle entering →disinfectant swashing → pure water swashing →bottle dropped down → bottle seated on the bottle pushing supporter →  pure water feeding→  (cap-aligning) cap-covered →capping → output of finished water



Superiority

The device employs key components of electrical appliances and metal materials manufactured by name brand factories from home and abroad.

It is not only with the advanced technology, high automatization, easy operation and reliable performances as the genuine device from abroad, but also features with small size, small weight and beautiful appearance,

Anti-corrodibility, thorough disinfection, effective anti-air pollution and high quality.

Available for the production of 5 & 3 gallons bottle filling, Capacity: 900B/H

Apply to the food & drink industry, medical industry and chemical industry widely



Main parameters:





Items
Specification
Production capacity
900 Buckets/hour
Bottle’s capacity
18.9 Liters (equal to 5 gallon)
Bottle’s specification (mm)
Φ270×490×Φ56
Cap’s specification (mm)
Φ58×40 (strip:L18mm,W:7.5mm)
Rated input power
25.0KW
Heat (heating tube) input power
4.0KW×2
Power supply
 AC415V±5%  50Hz
Rated current
79A
Net weight
Washing part:980kg
Filling part:360kg
Outer size
Washing part:3725×2060×2300(mm)
Filling part: 3700×800×2300(mm)
Requirement of air compressor
0.1 M3     0.17 M3/Min   0.8 MPa/Cm2
Requirement of water supply
20.5 M3/H
