2018 Automatic mineral water bottle filling machine and capping machine

FOB Reference Price:Get Latest Price
US $6,000-200,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Condition:
New
Application:
Beverage
Packaging Type:
Bottles, Cans, Case
Packaging Material:
Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V 50HZ
Power:
3KW
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Livingh2o
Model Number:
JYX XGF16 series
Dimension(L*W*H):
customized
Weight:
3000kg
Certification:
CE,ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Type::
Packing Machine
Packing Type::
Bottles
Automatic Grade::
Full-automatic
Condition::
New
Processing:
Filling Machine
Processing Types:
Water
Material:
Stainless Steel 304
Capacity:
2000-24000bph
Function:
Bottle Washing Filling Capping
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case
Port
Jiangmen,shenzhen etc.
Lead Time :
25 days after deposit
Video Description

2018 Automatic mineral water bottle filling  and sealing machine



Features:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan Mitsubishi, France Schneider, OMRON.



3-13

 316_  315_



 096_ 073_



Machine parameter:



Model
JYX XGF16-12-6
JYX XGF18-18-6
JYX XGF24-24-8
JYX XGF32-32-10
Capacity (500ml)(b/h)
2000-4000
3000-6000
6000-9000
10000-12000
Rinsing station
16
18
24
32
Filling station
12
18
24
32
Capping station
6
6
8
10
Rinsing water consumption (T/H)
0.8
1.2
1.2
1.5
Outsize(mm)
2350*1610*2250
2480*1960*2250
3010*2180*2400
4000*2200*2500
Packing size(mm)
2365*1625*2270
2495*1975*2270
3035*2195*2420
4030*2220*2530



More machines you may interest in:

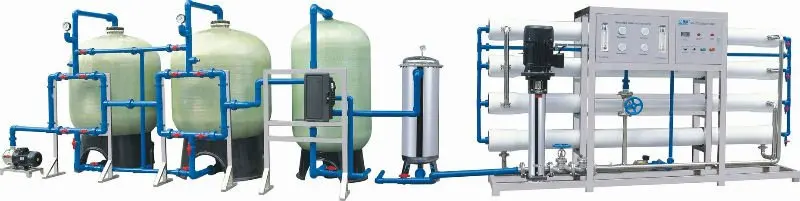

RO water treatment for pure water:



Reverse osmosis technology is the most advanced and effective desalting technology in the world for physical separation with macromolecule membrane, reverse osmosis equipment composes of reverse osmosis membrane component which is the core, high pressure multi-level centrifugal pump, high pressure pipe control valve and protective device, and can effectively remove dissolved salt, colloid, bacterium, virus and most organic from water.

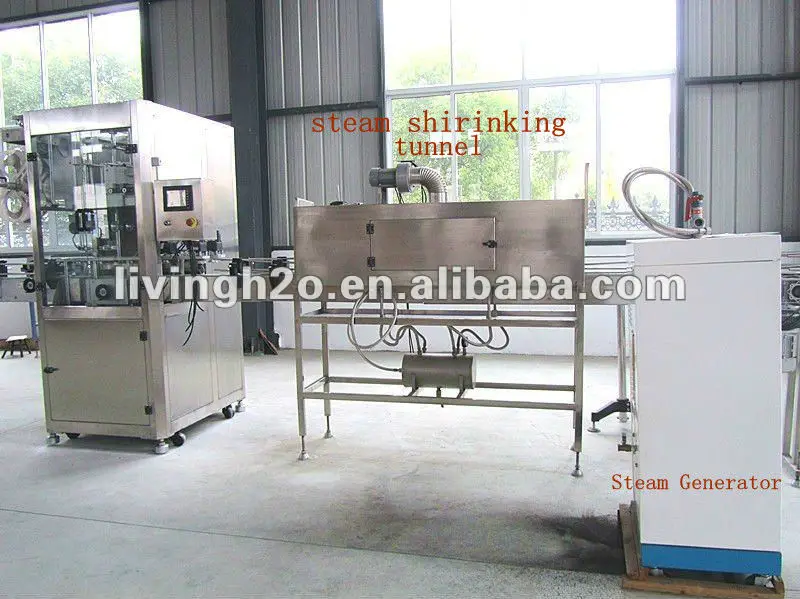

Shrinking Sleeve label machine
This machine adopts exclusive-design multi-cutter, mining agencies combination of steel, smooth moves. The tools life is doubled. Simple centre- guided positioning, more easily replaced specifications, make it easy for the operator to use.
Aircraft of the first belt bottles brushless DC motor driven, institutional design is easy maintenance. Main machine interface manipulation simple, using only one brand, stability practical. All types of motor equipped to regulate the EU level configuration, follow customer's demand to provide the European norms.

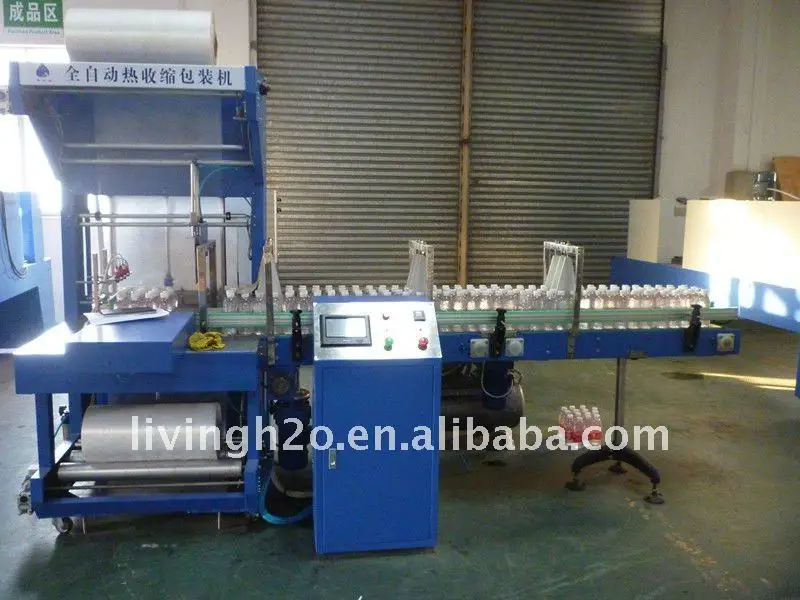

Full Auto Shrinking Package Machine
1) Specially designed and manufactured for the high-speed packing requirements of drinks (pure water, beverage, fruit juice, and milk product)
2) During the product forward conveying process, it can automatically group the product into package so as to save time and enhance packing efficiency.
3) Touch-screen operating panel with user-friendly interface, and convenient parameter setup, absolutely an easily- to- operate machine.
4) The ideal model of middle-speed heat-shrinking packager is the first choice in the domestic market.
