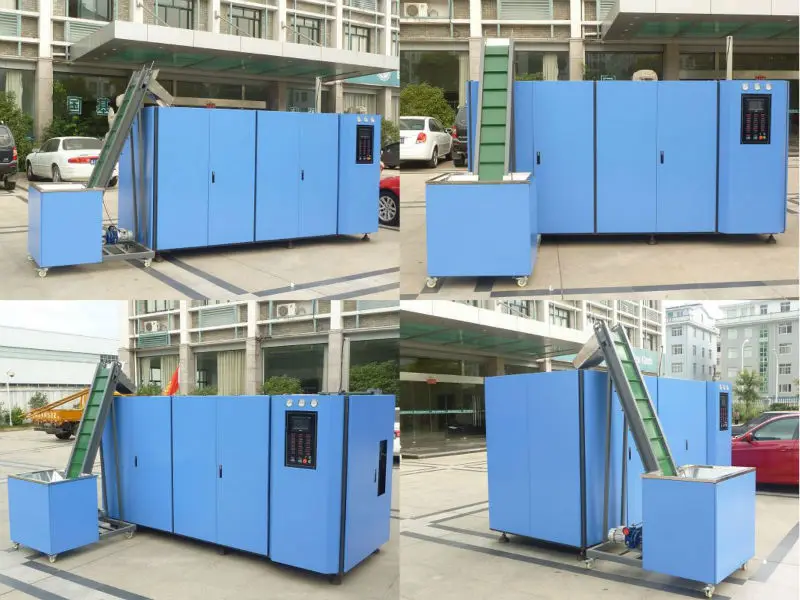

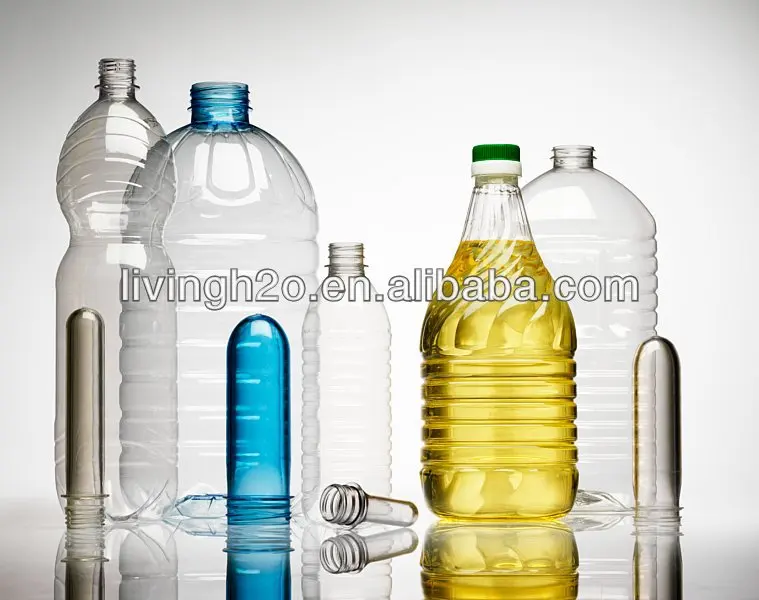

Hig speed automatic PET plastic small bottle making blow moulding machine 4 cavity
JYX-A4 is the fastest liner bottle blowing machine in mainland of China by now. It reaches around 4200BPH for 350ML bottle. Its baking tunnel is separated from the blow station so that time for mold opening is shortened with a result of speedy blowing and high output, damage to machine is lessened so as to keep reliable performance and prolong service life, as well as machine runs more smoothly and steadily.
JYX-A4 automatic stretch blow molding machine is equipped with patented preform loading system, which consists of two manipulators: rectilineal manipulator and overturning manipulator. The rectilineal manipulator moves preform with neck up to the preform holder, after heating, the overturning manipulator grips heated preform and overturn 180 put preform to blow station with neck down. After stretching and blowing, the bottle is taken off by overturning manipulator. The specially designed preform loading & bottle discharging system avoid possible damage to preform & bottle during transportation.
JYX-A4 is controlled by PLC. The whole process from preform feeding to bottle discharging is completed automatically with advantages of labor saving and no pollution. It consists of three main parts: preform loading system, Heater channel & blow station.
The standard operation of JYX-A4 stretch blow molding machine includes four steps as follow
Step 1. Put the preform into preform container and the conveyer will take the preform to orientation units automatically.
Step 2. Load the preform at neck up to preform holder, and then preform is conveyed into baking tunnel.
Step 3. After heating, preform is conveyed into the blow station, then close the mold, stretch and blow under low pressure and high pressure, exhaust, open the mold.
Step 4. The finished bottle is taken off by automatic discharging system

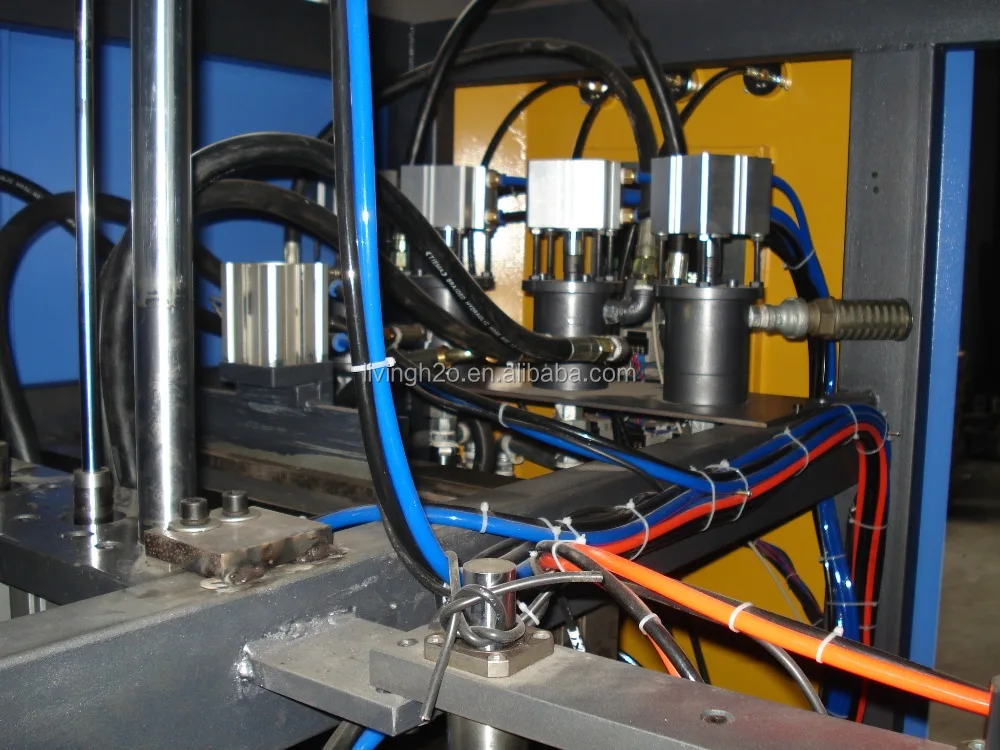

1) Pre-heating conveyor 2) Air storage

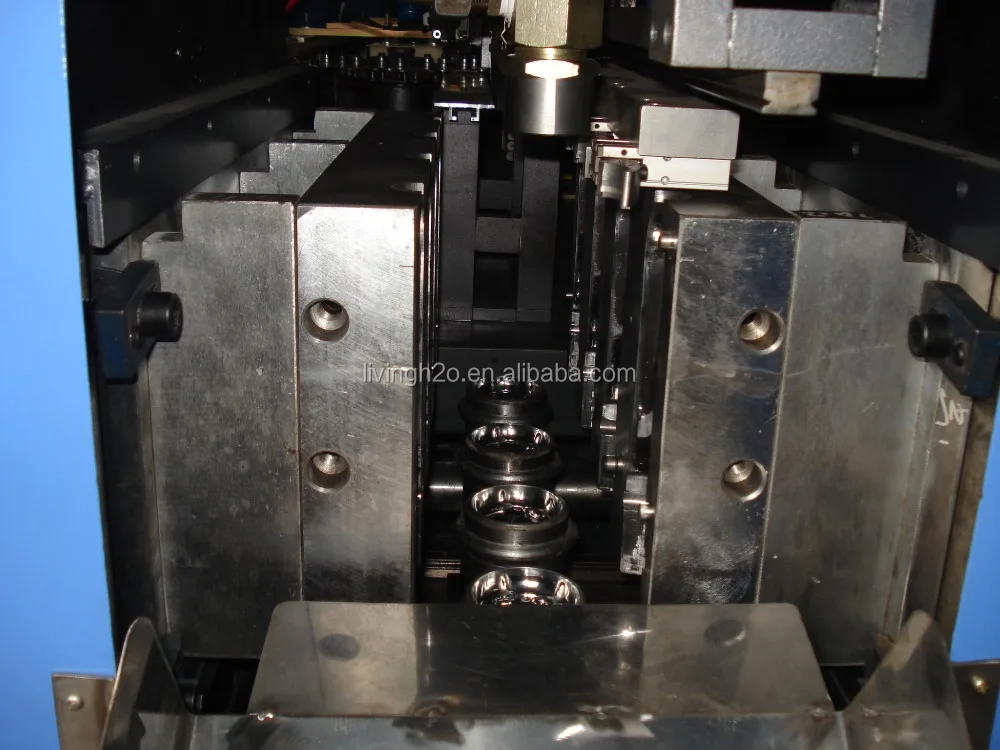

3) Circuit board 4) Bottle blowing
JYX-A4 technical data
Max height of bottle
Preform inner diameter
Max mold plate dimension (L × W)
380 × 460
Max mold thickness
High pressure compressor
1.2/30 × 3set
Mold opening stroke (adjustable)
Low pressure compressor
2.0/10 × 1sets
2.0/30 × 1sets
Main machine electricity
Voltage / frequency
Machine size and weight
Main machine (L × W × H)
4.2 × 1.8 × 2.0
Main machine weight
Conveyor (L × W × H)
1.4 × 1.1 × 1.85
High pressure compressor (L × W × H)
1.90 × 0.75 × 1.50 × 3sets
Low pressure compressor (L × W × H)
1.85 × 0.75 × 1.50
High pressure air reservoir tank (D × H)
0.70 × 2.25/3.0
Air dryer (L × W × H)
0.85 × 0.50 × 0.95
10 × 5pc
Cooling water: cooling water recycling system can be used with its power of 8~10 liter per minute and 2~3 kilos water pressure
Total power: 51.9 high pressure air volume (1m/min); low pressure air volume (1.2m/min)
